For a versatile starting point, I’d choose the Nilight 5-Pack 12V 5-Pin SPDT Relay and Wiring Harness Set: it pairs a common changeover design with included wiring for several installations. The DaierTek 6-Way Pre-Wired Relay and Fuse Box stands out for organizing multiple circuits, while the iRhapsody 4-Pin SPST 6-Pack suits straightforward on/off jobs. The main tradeoffs are 4-pin versus 5-pin function, current capacity, weather exposure, and whether you need separate relays or a centralized panel. Read on for the full comparison, selection criteria, and guidance on matching a relay to your wiring and load.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- Function matters more than pin count alone: 4-pin SPST models serve simple on/off circuits, while 5-pin SPDT models add a changeover contact that may not be needed for every installation.
- Harness inclusion separates ready-to-wire kits from bare replacement relays: several picks include sockets or pigtails, while pack-heavy options suit replacements when compatible wiring is already in place.
- The DaierTek 6-Way box addresses a different job from individual relays: it centralizes multiple circuits, trading the flexibility of separate placements for a more organized installation.
- Waterproof claims are not interchangeable with installation protection: sealed relay options can suit exposed locations, but connectors, splices, and mounting still affect how well the complete circuit handles moisture.
- Pack size and rating labels do not settle compatibility: check the vehicle’s voltage, the circuit’s current draw, terminal layout, fuse needs, and whether a relay’s internal diode requires correct polarity.
| 12V 40A Waterproof 5-Pin Automotive Relays, 4-Pack |  | Best for Exposed Installations | Quantity: 4 relays | Model: JD1914-12V-40A | Pin count: 5 | VIEW ON AMAZON | See Our Full Breakdown |
| iRhapsody 12V Waterproof 4-Pin Automotive Relay with Heavy-Duty Wire |  | Best Single Relay with Heavy-Duty Leads | Quantity: 1 relay kit | Contact type: Normally open | Coil voltage: 12V DC | VIEW ON AMAZON | See Our Full Breakdown |
| DaierTek 12V 6-Way Pre-Wired Relay and Fuse Box |  | Best for Organizing Multiple Circuits | Model: RB-R6F6-W2 | System voltage: 12 V | Relay slots: 6 | VIEW ON AMAZON | See Our Full Breakdown |
| 80/60Amp 12V DC 5-pin Automotive Relay Kit, with Heavy-Duty Pigtail |  | Best for Higher-Current Loads | Quantity: 6 relay kits | Coil voltage: 12 V DC | Pin configuration: 5-pin SPDT | VIEW ON AMAZON | See Our Full Breakdown |
| Nilight 12V 5-Pin SPDT Automotive Relay and Wiring Harness Set, 5-Pack |  | Best Multi-Circuit Harness Bundle | Included components: 5 relays and 5 wiring harness sockets | Connector type: Plug-in | Contact type: SPDT | VIEW ON AMAZON | See Our Full Breakdown |
| True MODS 6-Pack Bosch-Style 4-Pin 12V Fused Relay Kit, SPST, 30A |  | Best Complete 30A Kit | Quantity: 6 relays, 6 harnesses, 6 blade fuses | Relay type: Bosch-style 4-pin SPST | Coil voltage: 12V | VIEW ON AMAZON | See Our Full Breakdown |
| Nilight 5-Pack 12V 4-Pin SPST Automotive Relay Kit with 30A Fuses |  | Best for Organized Wiring | Quantity: 5 relays, 5 harnesses, 5 blade fuses | Relay type: 4-pin SPST, normally open | Coil voltage: 12V | VIEW ON AMAZON | See Our Full Breakdown |
| Nilight 10-Pack 12V SPDT 5-Pin Automotive Relays, 30/40A |  | Best Bulk Pack for SPDT Replacements | Quantity: 10 relays | Relay type: SPDT, 5-pin | Coil voltage: 12V DC | VIEW ON AMAZON | See Our Full Breakdown |
| Weasch 12V 40A 4-Pin SPST Waterproof Relay with 14AWG Harness |  | Best for Splash-Prone Installations | Relay type: 4-pin SPST, normally open | Coil voltage: 12V | Maximum peak switching current: 40A | VIEW ON AMAZON | See Our Full Breakdown |
| iRhapsody 12V 30A 5-Pin Automotive Relay, 8-Pack |  | Best for Mixed-Path Relay Replacements | Quantity: 8 relays | Voltage: 12V | Relay type: SPDT, 5-pin | VIEW ON AMAZON | See Our Full Breakdown |
| Gebildet 12V 40A SPST Automotive Relay Harnesses, 4-Pin, with Built-In Diodes, 2-Pack |  | Best for Switching Protection | Quantity: 2 relay harnesses | Relay type: 4-pin SPST, normally open | Coil voltage: 12V | VIEW ON AMAZON | See Our Full Breakdown |
| Nilight 5 Pack Waterproof Relay and Socket Harness 40/30 AMP |  | Best for Weather-Exposed Installations | Quantity: 5 relays | Relay type: 5-pin SPDT | Coil voltage: 12V | VIEW ON AMAZON | See Our Full Breakdown |
| iRhapsody 12V DC 5-Pin SPDT Automotive Relay Kit (25-Pack) |  | Best for Shop Stock | Quantity: 25 relays | Relay type: 5-pin SPDT | Coil voltage: 12V DC | VIEW ON AMAZON | See Our Full Breakdown |
| iRhapsody 5-Pin 12V DC Waterproof Automotive Relay Kit, 40A/30A, 5-Pack |  | Best for Protected 5-Pin Replacements | Quantity: 5 relays | Relay type: 5-pin SPDT | Coil voltage: 12V DC | VIEW ON AMAZON | See Our Full Breakdown |
| iRhapsody 4-Pin 12V DC SPST Automotive Relay Kit (Pack of 6) |  | Best for Multi-Circuit SPST Repairs | Quantity: 6 relays | Relay type: 4-pin SPST | Coil voltage: 12V DC | VIEW ON AMAZON | See Our Full Breakdown |
| automotive relay | Coil voltage | Quantity | Relay type |
|---|---|---|---|
| 12V 40A Waterproof 5-Pin Autom | 12 V DC | 4 relays | — |
| iRhapsody 12V Waterproof 4-Pin | 12V DC | 1 relay kit | — |
| DaierTek 12V 6-Way Pre-Wired R | — | — | — |
| 80/60Amp 12V DC 5-pin Automoti | 12 V DC | 6 relay kits | — |
| Nilight 12V 5-Pin SPDT Automot | 12V | — | — |
| True MODS 6-Pack Bosch-Style 4 | 12V | 6 relays, 6 harnesses, 6 blade fuses | Bosch-style 4-pin SPST |
| Nilight 5-Pack 12V 4-Pin SPST | 12V | 5 relays, 5 harnesses, 5 blade fuses | 4-pin SPST, normally open |
| Nilight 10-Pack 12V SPDT 5-Pin | 12V DC | 10 relays | SPDT, 5-pin |
| Weasch 12V 40A 4-Pin SPST Wate | 12V | — | 4-pin SPST, normally open |
| iRhapsody 12V 30A 5-Pin Automo | — | 8 relays | SPDT, 5-pin |
| Gebildet 12V 40A SPST Automoti | 12V | 2 relay harnesses | 4-pin SPST, normally open |
| Nilight 5 Pack Waterproof Rela | 12V | 5 relays | 5-pin SPDT |
| iRhapsody 12V DC 5-Pin SPDT Au | 12V DC | 25 relays | 5-pin SPDT |
| iRhapsody 5-Pin 12V DC Waterpr | 12V DC | 5 relays | 5-pin SPDT |
| iRhapsody 4-Pin 12V DC SPST Au | 12V DC | 6 relays | 4-pin SPST |
More Details on Our Top Picks
12V 40A Waterproof 5-Pin Automotive Relays, 4-Pack
For circuits exposed to road spray, dust, or marine conditions, this four-pack stands out for its IP67-sealed PA66 housing and standard 12V, 40A, five-pin format. The sealed construction offers more protection than the iRhapsody 4-Pin relay, which is described as water-repellent but must not be submerged. Four relays also give buyers spares for multiple repairs or accessory circuits. The five-pin layout can support replacement applications that need the additional terminal, but buyers must match the pinout and contact behavior to the vehicle’s wiring rather than assume every five-pin relay is interchangeable. The main tradeoff is that this package supplies relays, not a wiring harness, and the listing provides no warranty details. Choose it for a verified compatible replacement in a damp location; skip it if you need a pre-wired kit.
Pros:- Four relays provide replacements or spares for multiple circuits.
- IP67-rated housing is specified for dust and water protection.
- Five-pin, 12V design suits compatible replacement applications.
- 40A contacts cover many common accessory circuits.
Cons:- No wiring harness is included, so installation may require existing compatible sockets or separate wiring.
- Pinout and electrical compatibility must be checked before installation.
- The product details do not state a warranty.
Best for: DIY vehicle or marine owners replacing several compatible five-pin relays where dust and water exposure are concerns.
Not ideal for: Buyers who need harnesses included, require a documented warranty, or have not confirmed the vehicle’s pinout and relay specifications.
- Quantity:4 relays
- Model:JD1914-12V-40A
- Pin count:5
- Coil voltage:12 V DC
- Ingress protection:IP67
- Housing material:PA66 flame-retardant material
- Dimensions:1.07 × 0.98 in
Our verdict“Choose this four-pack for compatible five-pin circuits in wet or dusty locations, but verify the wiring and supply your own harness if needed.”

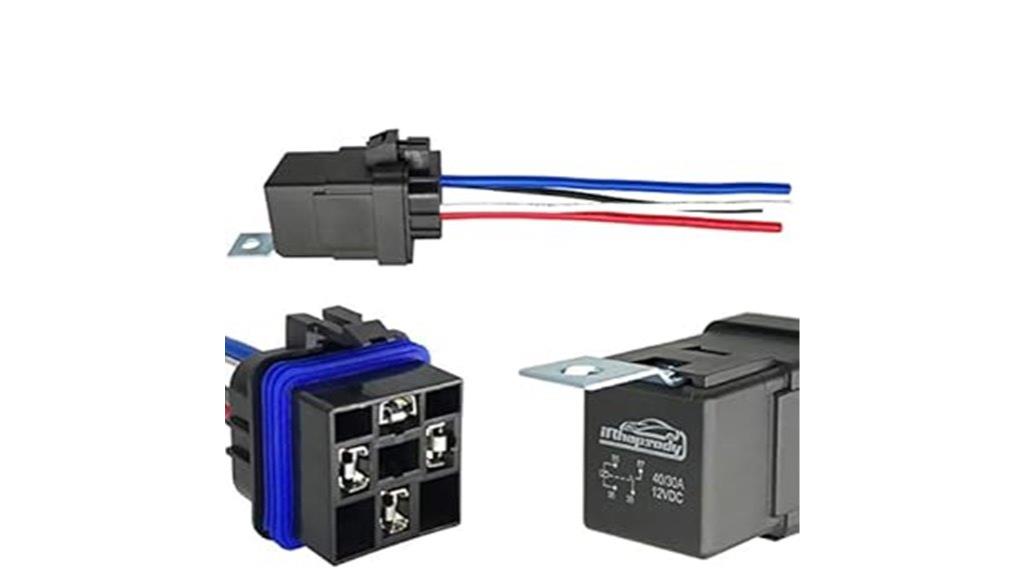

iRhapsody 12V Waterproof 4-Pin Automotive Relay with Heavy-Duty Wire
This kit is a practical choice when a repair calls for one four-pin relay with leads already attached. Its 12 AWG tinned-copper primary wires are heavier than the supplied wiring approach of a bare relay such as the 12V 40A Waterproof 5-Pin Automotive Relays, 4-Pack, which focuses on replacement relays rather than a wired assembly. The stated 40A maximum switching current suits many accessory loads, while the 7-inch leads can simplify placement where a socket is not convenient. Its water protection is more limited than the other pick’s IP67 rating: this relay is water-repellent and dustproof, but the maker says not to submerge it. It is also a single-relay kit, so it is less suited to stocking spares or wiring several circuits. Tight connections remain important, and its bulky listed dimensions may restrict cramped installations.
Pros:- Includes 7-inch leads for direct wiring without sourcing a separate harness.
- 12 AWG tinned-copper primary wires are specified for the main load circuit.
- Rated for up to 40A switching current.
- Includes a stated one-year warranty.
Cons:- Water-repellent design is not rated for submersion.
- Only one relay is included.
- Large listed dimensions may be difficult to fit in tight spaces.
Best for: A DIY installer replacing one 12V, four-pin accessory relay who wants heavy-gauge leads included rather than a bare relay.
Not ideal for: Marine or off-road buyers needing submersion protection, or anyone fitting multiple circuits who would benefit from a multi-relay pack.
- Quantity:1 relay kit
- Contact type:Normally open
- Coil voltage:12V DC
- Maximum switching current:40A
- Primary wire:12 AWG tinned copper
- Coil wire:16 AWG
- Wire length:7 inches
- Operating temperature:-30 to +80°C
- Warranty:1 year
Our verdict“Pick this kit for a single wired four-pin replacement where heavy primary leads matter more than submersion-rated protection.”
DaierTek 12V 6-Way Pre-Wired Relay and Fuse Box
Rather than a loose-relay bundle, this DaierTek unit combines six relay positions and six fuse slots in a pre-wired panel. That makes it the most organized option here for adding several vehicle, RV, or marine accessories: color-coded leads can reduce wiring mix-ups, and individual relays can be replaced without rebuilding the whole panel. Compared with the 80/60Amp 12V DC 5-pin Automotive Relay Kit, which supplies high-current relays and pigtails, this is a circuit-management solution with a stated 20A continuous wire rating, not a choice for every high-load application. Its covered enclosure resists dust, splashes, and light rain, but it is not submersible and offers less protection than the IP67 relay pack. Buyers should also plan for panel mounting and confirm each accessory’s current draw before assigning a circuit.
Pros:- Six relay slots and six fuse slots consolidate multiple circuits.
- Pre-wired, color-coded leads can simplify circuit connections.
- Individual relays can be replaced without disturbing the full panel.
- Cover helps resist dust, splashes, and light rain.
Cons:- 20A continuous current rating limits suitability for higher-load circuits.
- Not designed for submersion.
- Panel mounting requires space and a suitable installation location.
Best for: DIY builders wiring several moderate-load 12V accessories in a car, RV, or boat who want relays and fuses grouped in one panel.
Not ideal for: Installers with high-current loads above the stated 20A continuous rating or equipment exposed to submersion.
- Model:RB-R6F6-W2
- System voltage:12 V
- Relay slots:6
- Fuse slots:6
- Wire gauge:12 AWG
- Continuous current:20 A
- Mounting type:Panel mount
- Water protection:Resistant to dust, splashes, and light rain; not submersible
Our verdict“Choose this panel to organize several moderate-current accessory circuits, not as a substitute for higher-rated individual relays.”
80/60Amp 12V DC 5-pin Automotive Relay Kit, with Heavy-Duty Pigtail
Among these five, this kit is the standout for buyers who need a relay specified above the common 40A class: the listing gives an 80A normally open rating at 14V DC and includes a heavy-duty pigtail. Its five-pin SPDT layout also provides normally open and normally closed outputs, unlike the simpler normally open iRhapsody 4-Pin relay. The supplied color-coded wiring identifies the trigger, ground, and output leads, which can help when building a circuit from scratch. The higher rating is not a reason to ignore wiring limits: the product itself advises staying below its maximum and making tight load connections. Its listing also has some inconsistency, calling the kit 80/60A while detailing an 80A NO rating, so verify the exact contact rating and load requirements before use. It is not presented as waterproof.
Pros:- Listed 80A normally open contact rating at 14V DC.
- Five-pin SPDT arrangement provides normally open and normally closed outputs.
- Includes a heavy-duty pigtail with color-coded wires.
- 12 AWG and 16 AWG tinned-copper wiring is specified.
Cons:- Listing uses both 80/60A and 80A NO descriptions, so the exact rating should be confirmed.
- No water-protection rating is provided.
- Higher relay capacity does not remove the need for correctly rated wiring and secure connections.
Best for: Experienced installers wiring a compatible 12V accessory that needs an SPDT relay and a rating above the 40A options.
Not ideal for: Beginners seeking a clearly specified, weather-sealed replacement or buyers whose load wiring and connectors are not rated for the intended current.
- Quantity:6 relay kits
- Coil voltage:12 V DC
- Pin configuration:5-pin SPDT
- Maximum switching power:560 W
- Coil resistance:80 Ω
- Wire:12 AWG and 16 AWG tinned copper
- Operating temperature:-30 to +80°C
Our verdict“Choose this kit for a verified higher-current SPDT application when you can match the load wiring to the relay and confirm its rating.”
Nilight 12V 5-Pin SPDT Automotive Relay and Wiring Harness Set, 5-Pack
For buyers who want several accessory circuits ready to wire, this Nilight set pairs five SPDT relays with five harness sockets. Each relay supports up to 40A on the normally open side and 30A on the normally closed side, giving it more switching flexibility than the normally open iRhapsody 4-Pin relay. The color-coded harness wires can make connections easier to trace, while the stated -40°C to 125°C operating range suits installations exposed to broad temperature swings. The tradeoff is the extra wiring and socket bulk: this is less compact than buying bare relays such as the 12V 40A Waterproof 5-Pin Automotive Relays, 4-Pack, and installation still requires making sound connections. Unlike that four-pack, no waterproof rating is specified here, so I would not treat it as the better choice for wet mounting locations. A two-year warranty is included.
Pros:- Includes five SPDT relays and five matching harness sockets.
- Provides 40A normally open and 30A normally closed capacity.
- Color-coded wires help identify connections during installation.
- Specified operating range spans -40°C to 125°C and includes a two-year warranty.
Cons:- Harness sockets and wires add bulk compared with relays alone.
- Installation requires making and checking wiring connections.
- No waterproof rating is stated.
Best for: DIY installers wiring several 12V accessories who need SPDT switching and want matching harness sockets in the same package.
Not ideal for: Buyers prioritizing a compact bare replacement, a sealed relay for wet locations, or an installation that needs no wiring work.
- Included components:5 relays and 5 wiring harness sockets
- Connector type:Plug-in
- Contact type:SPDT
- Coil voltage:12V
- Normally open capacity:40A at 14V DC
- Normally closed capacity:30A at 14V DC
- Maximum switching voltage:30V DC
- Operating temperature:-40°C to 125°C
- Warranty:2 years
Our verdict“Pick this set for multiple wired SPDT circuits when harnesses and broad temperature ratings matter more than compactness or stated water protection.”

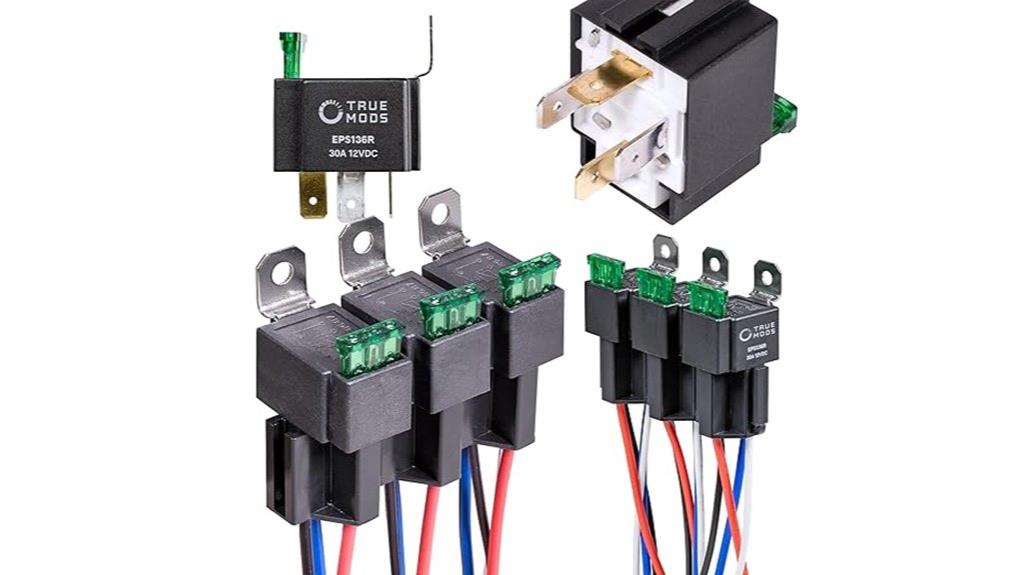

True MODS 6-Pack Bosch-Style 4-Pin 12V Fused Relay Kit, SPST, 30A
I’d choose the True MODS six-relay kit when I need several straightforward, fused circuits rather than a relay that changes between two outputs. Each normally open SPST relay comes with its own harness and 30A blade fuse, while the 14 AWG main-contact wires suit installations where wire capacity matters. Compared with the Nilight 5-Pack 12V 4-Pin SPST Automotive Relay Kit, this set supplies one more relay and specifies silver-plated copper contacts, but Nilight’s color-coded wiring and interlocking sockets may make circuit organization easier. The key limit is the 12V design and 14V maximum; this is not a general-purpose option for higher-voltage systems. I’d also match fuse and wire protection to the actual load rather than treating the 30A rating as a target for continuous operation.
Pros:- Six relays, six harnesses, and six blade fuses provide parts for multiple circuits.
- Each harness includes a built-in fuse socket and 30A blade fuse.
- 14 AWG main-contact wires support heavier wiring than thinner lead sets.
- Silver-plated copper contacts are specified for the relay contacts.
Cons:- Designed for 12V systems, with a stated 14V maximum.
- SPST normally open operation cannot switch between two output paths.
- Six separate harnesses take more space than a consolidated relay-and-fuse box.
Best for: DIY installers adding several independent 12V accessories, such as lights or horns, who want a separate harness and fuse for each circuit.
Not ideal for: Buyers wiring 24V systems or needing SPDT switching to route a circuit between normally open and normally closed outputs.
- Quantity:6 relays, 6 harnesses, 6 blade fuses
- Relay type:Bosch-style 4-pin SPST
- Coil voltage:12V
- Maximum switching current:30A
- Wire gauge:14 AWG
- Contact type:Normally open
- Contact material:Silver-plated copper
- Connector type:Quick connect
Our verdict“Choose this kit for multiple individually fused 12V circuits when you value a six-relay supply over compact centralized wiring.”
Nilight 5-Pack 12V 4-Pin SPST Automotive Relay Kit with 30A Fuses
The Nilight five-pack is the more orderly choice for installers who want wiring cues built into the harness. Its color-coded 14 AWG leads identify ground, power, trigger, and output, and the interlocking sockets help keep several relay connections grouped rather than loose. Like the True MODS six-pack, it includes a harness and 30A fuse for every relay; True MODS provides one additional set and specifies silver-plated copper contacts, while Nilight makes its wire functions easier to identify. The tradeoff is that these remain 12V, normally open SPST relays, so they do not suit higher-voltage vehicles or circuits that need an alternate output path. I’d favor this kit for a tidy multi-accessory installation, not for a single repair where most of the included pieces would go unused.
Pros:- Includes five relays, five harnesses, and five 30A blade fuses.
- Color-coded 14 AWG wires identify the ground, power, trigger, and output leads.
- Interlocking sockets help group relays in a multi-circuit installation.
- A two-year warranty is specified.
Cons:- 12V-only design limits use in higher-voltage electrical systems.
- SPST contacts provide no alternate output path.
- The five-piece set may be more than needed for a single relay replacement.
Best for: Car, truck, or RV owners wiring several 12V accessories who want color-coded leads and linked sockets to keep a multi-relay setup organized.
Not ideal for: Owners of 24V systems or anyone needing SPDT changeover switching rather than a normally open circuit.
- Quantity:5 relays, 5 harnesses, 5 blade fuses
- Relay type:4-pin SPST, normally open
- Coil voltage:12V
- Wire gauge:14 AWG
- Wire colors:Black: ground (85); red: VDC (30); white: trigger (86); blue: output (87)
- Wattage:360W
- Contact material:Copper
- Warranty:2 years
Our verdict“Pick Nilight when organized, color-coded wiring matters more than getting the extra relay in the True MODS six-pack.”
Nilight 10-Pack 12V SPDT 5-Pin Automotive Relays, 30/40A
For a repair shop or a project with many relay sockets already in place, I’d shortlist the Nilight 10-pack of 5-pin SPDT relays. Its changeover contacts can serve normally open or normally closed circuit designs, unlike the 4-pin SPST True MODS and Nilight kits, which only switch a normally open path. The larger pack is useful when stocking replacements, but it contains relays only—no harnesses or fuses—so it is less ready for a fresh installation than either complete kit. The rating needs careful reading: the description lists 30A switching and 40A contact current, which are not interchangeable assurances of a 40A switching load. It also specifies a 12V coil despite higher maximum voltage figures for applied or operating voltage. I’d verify the circuit and relay pinout before fitting one.
Pros:- Ten relays suit repeated repairs or keeping compatible spares on hand.
- SPDT contacts support normally open and normally closed circuit arrangements.
- Quick-connect terminals support use with compatible relay sockets.
- A two-year warranty is specified.
Cons:- No harnesses or fuses are included.
- The listed 30A switching rating is lower than the 40A contact current figure.
- Pinout and load suitability need checking against the vehicle circuit.
Best for: Mechanics and experienced DIYers who need a supply of 5-pin SPDT replacements for compatible 12V automotive, truck, or marine circuits.
Not ideal for: First-time installers seeking prewired sockets and fuses, or buyers who need a clearly stated 40A switching rating for a continuous high-current load.
- Quantity:10 relays
- Relay type:SPDT, 5-pin
- Coil voltage:12V DC
- Maximum applied voltage:15.6V DC
- Maximum operating voltage:27V DC
- Coil power:1.8W
- Coil resistance:80Ω
- Warranty:2 years
Our verdict“Choose this bulk pack for compatible SPDT replacements, but not as a ready-to-wire kit or a guaranteed 40A switching solution.”

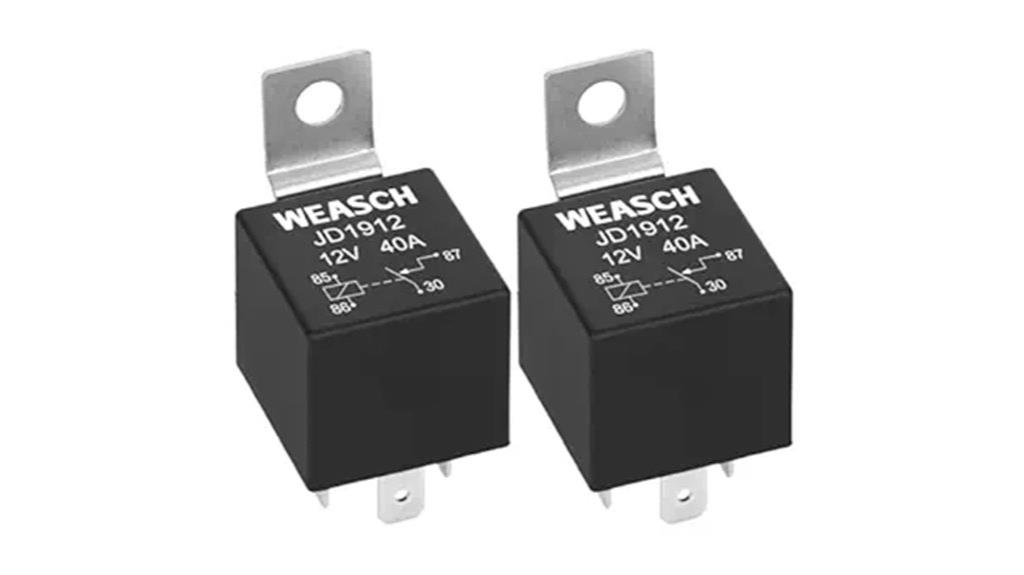

Weasch 12V 40A 4-Pin SPST Waterproof Relay with 14AWG Harness
The Weasch 40A relay kit stands apart from the multi-relay Nilight and True MODS sets by pairing one harness with a splash-proof housing and tinned copper wiring. That makes it the more targeted pick for a single accessory circuit exposed to road spray or outdoor moisture, such as auxiliary lights or a small pump. Its power leads are 14 AWG, while the control wires are 16 AWG, so the wiring is differentiated by function rather than uniformly heavy. The advertised 40A peak rating is not a continuous-load target; the product guidance says to keep continuous loads 10% to 15% below that figure. It is also not submersible, and its dimensions exclude the wires. Compared with the fused six-relay True MODS kit, Weasch offers splash protection but not a multi-relay supply or a listed included fuse.
Pros:- Splash-proof housing offers protection from moisture and debris in exposed locations.
- Tinned copper wires are specified for corrosion resistance.
- 14 AWG power wires are paired with 16 AWG control wires.
- 40A peak switching rating suits compatible accessory circuits when loads are kept below the peak limit.
Cons:- Splash-proof construction is not suitable for submersion.
- Continuous loads should stay 10% to 15% below the peak rating.
- The stated dimensions exclude wires, so mounting clearance needs checking.
Best for: A DIYer adding one 12V light, horn, or small pump in a location exposed to splash and debris, with room to mount the relay housing.
Not ideal for: Installers who need submersion protection, several relays in one purchase, or a clearly specified included fuse for the circuit.
- Relay type:4-pin SPST, normally open
- Coil voltage:12V
- Maximum peak switching current:40A
- Coil power:1.8W
- Coil resistance:80Ω
- Maximum switching voltage:27V DC
- Wire gauge:16 AWG control wires; 14 AWG power wires
- Water resistance:Splash-proof; do not submerge
- Dimensions:2.44 × 1.77 × 1.38 inches, excluding wires
Our verdict“Choose Weasch for one splash-exposed 12V accessory circuit, provided the relay stays dry enough and the continuous load remains below its peak rating.”
iRhapsody 12V 30A 5-Pin Automotive Relay, 8-Pack
The iRhapsody eight-pack is a practical stock-up option when a vehicle or lawn mower uses compatible 5-pin SPDT relays. Its normally open and normally closed contacts allow a circuit to switch between two paths, giving it more switching flexibility than the 4-pin SPST True MODS and Nilight kits. It also offers two more relays than the Nilight 10-pack? No: Nilight includes ten, so iRhapsody is the smaller bulk purchase; its appeal is a middle-sized supply for buyers who do not need a full ten-relay pack. These are plug-in relays, not complete harness kits, and the listing calls for keeping operation 10% to 15% below rated capacity. That makes the 30A figure a ceiling to respect, not a load target. I’d check socket compatibility and the vehicle’s wiring diagram before ordering.
Pros:- Eight relays provide multiple replacements or spares.
- SPDT contacts provide normally open and normally closed paths.
- Plug-in design suits compatible 5-pin relay sockets.
- The product is listed for automotive and lawn mower applications and includes a one-year warranty.
Cons:- No wiring harnesses or fuses are listed as included.
- Instructions recommend operating 10% to 15% below rated capacity.
- Socket and pinout compatibility must be confirmed before installation.
Best for: Owners or repairers of cars and lawn mowers that use compatible 5-pin SPDT relays and need several replacements without buying a ten-pack.
Not ideal for: Installers who need prewired harnesses, included fuses, waterproofing, or relay capacity beyond a conservative 30A application.
- Quantity:8 relays
- Voltage:12V
- Relay type:SPDT, 5-pin
- Contact type:Normally open and normally closed
- Power:360W
- Contact material:Copper
- Connector type:Plug-in
- Warranty:1 year
Our verdict“Pick this eight-pack for compatible 5-pin SPDT replacements when you want more than a few relays but do not need the Nilight ten-pack.”
Gebildet 12V 40A SPST Automotive Relay Harnesses, 4-Pin, with Built-In Diodes, 2-Pack
The Gebildet two-pack stands apart from the other 4-pin options here by adding built-in diodes, which suppress voltage spikes from the relay coil as it switches. That can help protect sensitive electronics in a 12V circuit, provided the relay is wired with the correct polarity. Its 40A rating and included harnesses make it a practical choice for two straightforward, normally open switching jobs. Compared with the six-relay iRhapsody SPST kit, Gebildet supplies fewer relays but adds diode protection; the iRhapsody kit offers more spares and a broader stated temperature range. The tradeoff is the Gebildet’s 8V minimum switching voltage, which may be a poor match for circuits that need reliable operation during low-voltage conditions. Buyers should also confirm the harness pinout and load requirements before installation.
Pros:- Built-in diodes suppress induced voltage during switching
- 40A rating suits many 12V automotive loads
- Two pre-wired relay harnesses are included
- Stated mechanical life of 10,000,000 operations
Cons:- Minimum switching voltage is 8V, limiting use in low-voltage conditions
- SPST normally open design cannot perform SPDT changeover functions
- Two relays provide less spare capacity than the six-pack iRhapsody SPST kit
Best for: 12V vehicle owners wiring a pair of normally open circuits who want diode suppression built into the relay.
Not ideal for: Anyone needing a large stock of replacements, a five-pin changeover relay, or switching below 8V.
- Quantity:2 relay harnesses
- Relay type:4-pin SPST, normally open
- Coil voltage:12V
- Minimum switching voltage:8V
- Contact material:Silver alloy
- Harness wire gauge:12 AWG
- Operating temperature:-55°C to +70°C
Our verdict“Choose the Gebildet pair for two diode-protected, normally open 12V circuits, but skip it if you need SPDT switching or more relays.”
Nilight 5 Pack Waterproof Relay and Socket Harness 40/30 AMP
For a vehicle, RV, or marine project where moisture and dust are the main concerns, this Nilight kit pairs five sealed 5-pin relays with pre-wired harnesses. Its weather-resistant construction gives it an advantage over the iRhapsody 25-pack, which supplies bare relays without sockets and has no stated waterproof protection. The 12 AWG tinned-copper wiring also suits installations where the harness needs to handle substantial current, though the supplied wire gauge is listed as 12/16 AWG, so buyers should check the lead assignment and circuit plan. The five-pin SPDT layout gives more switching flexibility than the Gebildet four-pin SPST pair. The main limits are its 12V coil and a specification listing 14V as the minimum switching voltage, which merits verification against the intended application. Waterproof does not mean suitable for submersion.
Pros:- Five relays and pre-wired sockets simplify multi-circuit installation
- Sealed construction is specified for dust and moisture resistance
- 5-pin SPDT design supports changeover switching
- Harness includes heavy-duty tinned-copper wire
Cons:- 12V coil limits compatibility with higher-voltage systems
- Listed 14V minimum switching voltage may not suit typical low-voltage operating conditions
- Weather resistance does not make the relays suitable for submersion
Best for: DIY installers equipping a 12V vehicle, RV, or marine circuit who need multiple weather-resistant relays with harnesses.
Not ideal for: Owners wiring higher-voltage systems, needing a confirmed low-voltage switching threshold, or planning submerged installation.
- Quantity:5 relays
- Relay type:5-pin SPDT
- Coil voltage:12V
- Maximum switching current:40A
- Maximum switching voltage:14V
- Wire gauge:12/16 AWG
- Weather protection:Waterproof and dust-proof construction
- Warranty:2 years
Our verdict“Pick this Nilight kit for several harnessed circuits exposed to weather, but verify the voltage specifications and keep the relays out of submerged locations.”
iRhapsody 12V DC 5-Pin SPDT Automotive Relay Kit (25-Pack)
The iRhapsody 25-pack is aimed at repeat repairs and multi-vehicle work, not a single relay replacement. Its 25 universal 5-pin SPDT relays provide a substantial supply of changeover components, and the 40A/30A switching specification covers many common automotive circuits. Compared with the five-relay Nilight weatherproof kit, this package offers far more relays but does not include sockets or harnesses and has no stated sealing against water or dust. That makes it a better fit for a workshop already stocked with compatible connectors than for a first-time installer. The stated 10-million-operation mechanical life and -30°C to +80°C range support broad routine use, but the one-year warranty and bulk quantity are less appealing if only one repair is on the list.
Pros:- 25 relays suit recurring repairs and shop inventory
- 5-pin SPDT format supports changeover circuits
- 40A/30A switching capability covers many common automotive applications
- Stated mechanical life of 10,000,000 operations
Cons:- No sockets or harnesses are included
- Bulk quantity is excessive for most one-time repairs
- No waterproof or dustproof protection is specified
Best for: Automotive repair shops, fleet maintainers, and experienced DIYers who use standard 5-pin relays regularly and already have sockets.
Not ideal for: Single-repair buyers or installers who need weather-sealed relays and ready-to-wire harnesses.
- Quantity:25 relays
- Relay type:5-pin SPDT
- Coil voltage:12V DC
- Switching power:560W
- Coil resistance:80 Ω
- Operating temperature:-30°C to +80°C
- Warranty:1 year
Our verdict“Choose this pack to stock a repair bench with standard 5-pin relays, not for a single installation that needs sockets or weather protection.”
iRhapsody 5-Pin 12V DC Waterproof Automotive Relay Kit, 40A/30A, 5-Pack
This five-pack offers a middle ground between the small Gebildet pair and the bulk iRhapsody 25-pack: it supplies five 5-pin relays with heavy-duty tinned-copper leads and water-repellent, dustproof construction. That makes it more installation-ready and better suited to exposed automotive locations than the bare relays in the 25-pack. Its SPDT format provides changeover capability, while the manufacturer advises keeping loads 10–15% below the rated capacity rather than treating 40A as a routine operating target. The protection is useful against splashes and dust, but the relays must not be submerged. Installation also calls for care because forcing a relay into its socket can bend the connectors. Compared with the Nilight waterproof harness kit, this option has clear lead-wire specifications, but buyers should confirm what socket arrangement their setup requires.
Pros:- Five 5-pin SPDT relays provide changeover functionality
- Water-repellent and dustproof construction suits splash-prone locations
- 12 AWG tinned-copper primary leads support higher-current wiring
- Operating range is specified from -30°C to +80°C
Cons:- Not suitable for submerged locations
- Manufacturer recommends operating 10–15% below rated capacity
- Forcing installation can bend socket connectors
Best for: DIY installers replacing several 5-pin relays in splash-prone vehicle locations who can keep loads below the rated limit.
Not ideal for: Marine installations exposed to submersion, circuits that must run continuously near 40A, or buyers who need a bulk supply.
- Quantity:5 relays
- Relay type:5-pin SPDT
- Coil voltage:12V DC
- Maximum switching current:40A
- Maximum switching power:560W
- Primary lead wire:12 AWG tinned copper
- Water resistance:Water-repellent and dustproof; do not submerge
- Operating temperature:-30°C to +80°C
Our verdict“Choose this kit for several splash-exposed 5-pin replacements with conservative loads, but not for submerged or near-limit service.”
iRhapsody 4-Pin 12V DC SPST Automotive Relay Kit (Pack of 6)
When the job calls for several simple on/off circuits, this iRhapsody kit provides six 4-pin SPST relays with harnesses, a more useful quantity than the Gebildet two-pack for multi-circuit work. Its 40A contact rating, 1.8W coil, and stated 7ms operating time make it a straightforward choice for common 12V switching tasks. Unlike Gebildet, it does not specify built-in diode suppression, so buyers protecting sensitive electronics should factor that difference into the wiring plan. It also lacks the SPDT changeover function offered by the two five-pin iRhapsody kits. The broad -30°C to +80°C temperature range and stated life figures support routine vehicle use, but its must-operate voltage is listed as 6–8V; check that this suits the vehicle circuit rather than assuming it will switch reliably during every low-voltage event.
Pros:- Six relays and harnesses support multiple installations or keep spares on hand
- 40A maximum switching current suits many automotive loads
- Stated electrical life of 100,000 operations and mechanical life of 10,000,000
- Operating temperature range is -30°C to +80°C
Cons:- SPST layout cannot replace a 5-pin SPDT relay in a changeover circuit
- Built-in diode suppression is not specified, unlike the Gebildet pair
- Must-operate voltage is listed as 6–8V, requiring a check against the circuit
Best for: DIYers or fleet maintainers wiring several independent 12V on/off circuits who want relays and harnesses in one kit.
Not ideal for: Installers who need SPDT changeover, built-in diode suppression, or a relay specified for operation below 6V.
- Quantity:6 relays
- Relay type:4-pin SPST
- Coil voltage:12V DC
- Maximum switching current:40A
- Coil power:1.8W
- Must-operate voltage:6–8V DC
- Operating temperature:-30°C to +80°C
- Operate/release time:7ms / 5ms
Our verdict“Pick this six-pack for multiple standard 12V on/off circuits with harnesses, but choose a five-pin kit for changeover switching.”
How We Picked
I compared these automotive relays by the details that change a real installation: relay function, stated current rating, included harness or socket, weather protection, and pack format. A kit with wiring can reduce sourcing work for a new circuit, while a larger relay-only pack may make more sense for replacements or repeat projects. I also separated individual relays from the DaierTek 6-way fuse-and-relay box, since a centralized panel solves a different wiring problem than a single relay.
The ranking favors usable versatility and clear application fit over pack count alone. Options with common 12V configurations and useful wiring components rank ahead of bulk packs that are best for a narrower replacement need. Waterproof designs, higher stated amperage, built-in diodes, and integrated fuse distribution earn attention when those features address a specific installation, but none substitutes for checking the vehicle’s wiring diagram and load requirements. Product details supplied here do not establish universal vehicle compatibility or independent performance testing, so I treat fit and ratings as items buyers must verify.
Factors to Consider When Choosing Automotive Relays
Choosing among these kits starts with the circuit, not the package size. I’d first identify the relay function and electrical load, then check how the relay will connect, where it will sit, and what protection the circuit needs. These broader checks can prevent a relay that looks suitable on paper from becoming a mismatched or incomplete installation.
Match SPST or SPDT to the Circuit
An SPST relay acts as a basic switch, which is generally the simpler fit when a circuit only needs to turn on or off. An SPDT relay adds a changeover contact, letting the circuit switch between two paths; that extra terminal does not automatically make it a better replacement. Check the original relay diagram or vehicle wiring diagram for terminal numbers and contact layout before buying. A five-pin relay can have different internal arrangements, so pin count by itself is not proof of compatibility. A common mistake is buying a five-pin model for a four-pin application without confirming which terminals are used. If the unused contact is isolated as required by the diagram, it may work in some setups, but verify the circuit rather than assuming it will.
Size the Relay and Fuse for the Actual Load
Use the circuit’s expected current draw and the manufacturer’s wiring specifications to select a relay rating; do not choose solely by the largest number printed in a listing. A relay rated for a certain current does not make undersized wire or an unsuitable fuse safe. The relay, wire gauge, connector, fuse, and load should be treated as one system. Check whether the rating applies to the relevant type of load, since motors and other inductive devices can place different demands on contacts than simple resistive loads. Avoid replacing a factory relay with a higher-rated one as a way to solve a recurring fuse failure. That symptom can point to a short or overloaded circuit that needs diagnosis instead.
Decide Whether You Need a Harness or a Replacement Relay
A pre-wired socket or pigtail is useful when adding a circuit or replacing a damaged connector, since it gives you matching leads to integrate into the wiring. A relay-only multipack can be a cleaner choice when the existing socket is intact and its terminal arrangement matches. Before ordering, check the harness wire gauge, connector style, lead length, and whether the kit includes a fuse holder or fuse. Do not assume that a bundled harness is suitable for every current rating just because it fits the relay. For a vehicle-specific repair, compare the socket and wiring diagram with the original part. For a custom installation, plan routing and strain relief before choosing a kit based on convenience alone.
Treat Weather Protection as a Whole-Connection Issue
A waterproof relay can be a sensible choice near splash-prone areas, but the relay body is only one part of the exposed connection. The socket, wire entries, splices, fuse holder, and mounting position can still admit moisture or suffer corrosion. Check what the product description says is sealed rather than assuming the entire harness is weatherproof. Use suitable connectors and mounting practices for the environment, and keep connections away from standing water where possible. In a dry, protected cabin, a sealed relay may add little practical benefit compared with correct fit and wiring. For engine-bay or exterior use, weather protection deserves more weight, but it cannot replace sound installation.
Check for Diodes and Polarity Requirements
Some relays include an internal coil-suppression diode, which can help limit voltage spikes when the coil switches off. A diode makes coil polarity important: reversing the positive and ground connections may prevent operation or cause an electrical fault. Check the relay’s diagram and terminal markings before wiring, especially when replacing a relay with a different internal design. Do not assume that two relays with the same pin count have the same coil circuitry. If your existing wiring was designed for a resistor-suppressed relay or a different polarity, compare the specifications before substituting a diode-equipped option. When the diagram is missing, identify the terminals with reliable documentation rather than testing by trial and error.
Choose Between Individual Relays and a Distribution Box
Individual relay harnesses offer placement flexibility, which can help when circuits are spread across a vehicle or a single component needs replacement. A multi-way relay and fuse box can make several added circuits easier to group, label, and service, but it calls for space and a planned layout. Count the circuits you need now and allow room for any realistic additions without buying capacity you cannot install neatly. A central box also concentrates wiring, so its mounting location, access to fuses, and cable routing matter. Buyers adding one accessory may find a single harness less involved than a panel. For multiple auxiliary circuits, a fuse-and-relay box can make the system easier to inspect later.
Frequently Asked Questions
Can I replace a 4-pin relay with a 5-pin relay?
Only if the terminal layout and internal diagram match the circuit’s requirements. A 5-pin SPDT relay has a changeover contact that a 4-pin SPST relay does not, so matching the housing or socket shape is not enough. Check the original relay diagram, terminal numbers, and the replacement’s contact arrangement. Some applications may leave the extra contact unused, but that must be confirmed against the wiring plan. If the diagrams differ or cannot be verified, use a relay with the specified configuration.
Should I choose a 30/40A relay or an 80/60A relay?
Choose based on the load, circuit design, and wiring, not on the highest stated rating. The relay’s rating must suit the type of load, and the wire, socket, fuse, and connections must also be appropriate. A higher-rated relay does not protect a circuit from undersized wiring or a short. Check the accessory or vehicle documentation for current draw and recommended protection. If a circuit repeatedly blows its fuse, diagnose the cause instead of increasing the relay or fuse rating without guidance.
Do I need a waterproof relay for an automotive installation?
That depends on where the relay and its connections will be mounted. A sealed relay can be a sensible choice in a location exposed to splash or damp conditions, while a protected cabin installation may not need that feature. Check whether the socket and wire entries have protection too; a sealed relay body alone does not make an entire harness waterproof. Mounting and connector quality still affect long-term reliability. If the product description does not specify the protection of the complete assembly, avoid treating it as fully weatherproof.
When is a relay-and-fuse box better than separate relay harnesses?
A relay-and-fuse box is more practical when you are organizing several added circuits in one accessible location. It can group protection and switching components, but it needs a suitable mounting area and deliberate wire routing. For a single replacement or an accessory mounted far from other circuits, a separate relay harness may be simpler. Plan how each circuit will be labeled and serviced before choosing a centralized panel. The right choice depends on the number and layout of circuits, not simply on having more relay positions available.
What should I check before installing a relay with a built-in diode?
Confirm the relay’s coil polarity and terminal diagram before connecting it. A built-in diode can suppress a voltage spike, but it makes correct positive and ground connections more important than with a non-polarized coil. Compare the replacement’s diagram with the vehicle or accessory wiring documentation, including terminal numbers. Do not assume a matching pin count means the internal wiring is identical. If polarity or terminal function is unclear, pause and get the correct wiring information before powering the circuit.
Conclusion
For the broadest range of common add-on circuits, my best overall choice is the Nilight 5-Pack 12V 5-Pin SPDT Relay and Wiring Harness Set, provided its changeover layout matches the wiring plan. The best value for straightforward on/off replacements is the iRhapsody 4-Pin SPST 6-Pack, while the True MODS 6-Pack is another fit for buyers seeking fused 4-pin relays. I’d call the DaierTek 6-Way Pre-Wired Relay and Fuse Box the best premium-style option for organizing multiple circuits, though it makes less sense for a single accessory. Beginners adding one circuit may prefer a harness-included kit with a clearly matching diagram, such as the iRhapsody waterproof 4-pin option, and should verify wire and fuse suitability before installation. For exposed locations, compare waterproof relay-and-socket kits; for bulk replacements, consider the larger iRhapsody 25-pack or Nilight 10-pack only after confirming the required pin layout and rating. The best pick is the one that matches your circuit, not simply the one with the most relays.
Halloween Picks
halloween
As an affiliate, we earn on qualifying purchases.
