Automotive oscilloscopes are essential tools for diagnosing vehicle electronic systems, helping technicians analyze signals and identify faults quickly. The best models balance performance, ease of use, and durability, but they differ widely in features and price. The FNIRSI 1013D Plus stands out for its portability and high bandwidth, making it ideal for on-the-go diagnostics. The Hantek 1008C+ offers extensive channels at a competitive price, suited for complex testing. Buyers often face a tradeoff between advanced features and ease of use, especially for those new to waveform analysis. Continue reading for a detailed comparison of the top options to find the perfect fit for your automotive diagnostics needs.
Key Takeaways
- Performance and bandwidth are critical for accurate waveform analysis, especially on modern vehicles with complex electronic systems.
- Portability options like handheld models are ideal for technicians working in the field but may lack some advanced features of bench-top units.
- Multi-channel capabilities and connectivity options significantly enhance diagnostic versatility, especially for comprehensive testing.
- Price differences often reflect build quality, feature set, and ease of use—more expensive models tend to be more user-friendly for beginners.
- Battery life and durability are often overlooked but crucial for fieldwork, ensuring the scope remains reliable during extended use.
| automotive oscilloscope | Sampling Rate | Channels | Bandwidth | Display |
|---|---|---|---|---|
| 3 in 1 Handheld Oscilloscope A | 280MSa/s | 2 | 50MHz | Synchronous waveform display |
| FNIRSI 1013D Plus Oscilloscope | 1 GSa/s | 2 | 100 MHz | 7-inch TFT LCD Touch Screen |
| FNIRSI DPOS350P 4-in-1 Handhel | 1 GSa/s | — | 350 MHz | 7-inch touchscreen |
| Automotive Oscilloscopes: Wave | — | — | — | — |
| Mastering Automotive Oscillosc | — | — | — | — |
| Micsig SATO1004 Portable Autom | 1 GSa/s | 4 | 100 MHz | 8-inch Touch Screen |
| Hantek 1008C+HT201+HT30A+HT307 | 2.4MSa/s | 8 | — | — |
| Hantek 1008C PC USB 8CH Automo | 2.4MSa/s | 8 | — | — |
More Details on Our Top Picks

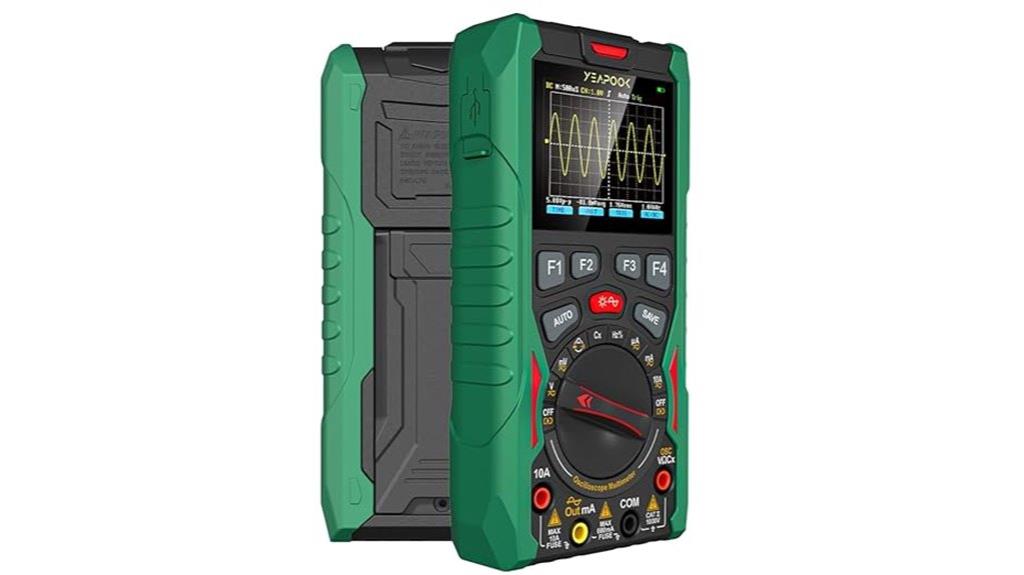

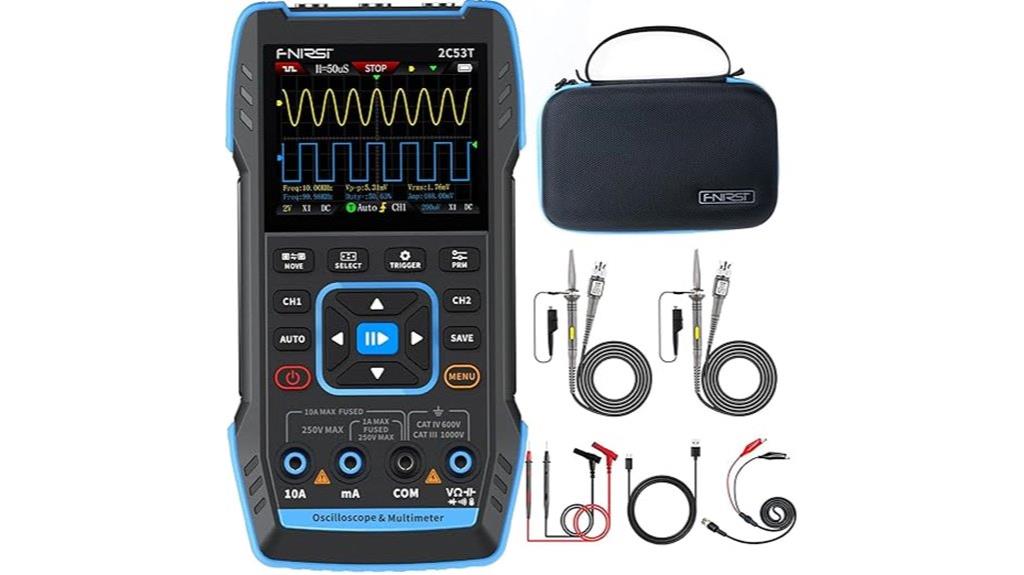

3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
This device stands out for combining an oscilloscope, multimeter, and signal generator into one compact package, making it highly versatile for automotive diagnostics. Its 50MHz bandwidth and 280MSa/s sampling rate enable detailed waveform analysis, comparable to dedicated oscilloscopes like the FNIRSI DPOS350P but with added measurement functions. The automatic waveform recognition speeds up diagnostics, yet its complex feature set may challenge users unfamiliar with advanced electronics. Compared to simpler models like the FNIRSI 1013D Plus, this option offers broader functionality but sacrifices some ease of use and higher-frequency capabilities. It’s ideal for technicians needing a multi-tool in one device, though not suited for very high-frequency automotive signals. Limited bandwidth and higher power consumption are tradeoffs worth noting.Pros:- Multi-functional device combining oscilloscope, multimeter, and signal generator
- High sampling rate and bandwidth for detailed waveform analysis
- Type-C port allows fast charging and data transfer
Cons:- Complex features may require reading the manual for proper use
- Higher power consumption in high-speed mode
- Limited to 50MHz bandwidth, not suitable for very high-frequency signals
Best for: Experienced automotive technicians who need an all-in-one handheld solution for various electrical measurements
Not ideal for: Beginners or hobbyists who prefer simple, dedicated oscilloscopes without additional functions
- Channels:2
- Bandwidth:50MHz
- Sampling Rate:280MSa/s
- Measurement Range:Resistance, capacitance, continuity, diodes, current
- Display:Synchronous waveform display
- Power:Type-C charging port
- Storage Depth:128K
Our verdict“This pick makes the most sense for experienced professionals seeking a versatile, all-in-one automotive diagnostic tool.”
FNIRSI 1013D Plus Oscilloscope – Portable Handheld 2-Channel 100MHz Bandwidth Touchscreen
The FNIRSI 1013D Plus excels in offering a portable, lightweight design with a user-friendly 7-inch touchscreen, making it a strong choice for on-the-go diagnostics. Its 100MHz bandwidth and 1 GSa/s sampling rate surpass many basic models like the Hantek 1008C, providing clearer detail for complex signals. The built-in waveform storage and high voltage protection add to its practicality, though its 2-channel limitation makes it less ideal for simultaneous multi-signal testing common in more advanced setups. Battery life of around four hours is adequate but may require frequent recharging during intense use. This device suits technicians needing a balance of portability and performance, but it may challenge less experienced users due to its advanced features.Pros:- Portable and lightweight for easy field use
- High sampling rate and bandwidth for detailed analysis
- Touchscreen interface simplifies operation
Cons:- Limited to 2 channels, restricting complex multi-signal testing
- Battery life of around 4 hours may limit prolonged use
- Requires some technical knowledge to utilize advanced features
Best for: Field technicians and automotive enthusiasts who need a portable, easy-to-use oscilloscope with high performance
Not ideal for: Users requiring multi-channel testing or long-duration field diagnostics without frequent recharges
- Channels:2
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Display:7-inch TFT LCD Touch Screen
- Battery:6000 mAh
- High Voltage Tolerance:400 V
- Storage:1 GB
Our verdict“Ideal for mobile diagnostics and users seeking straightforward operation with high signal clarity.”

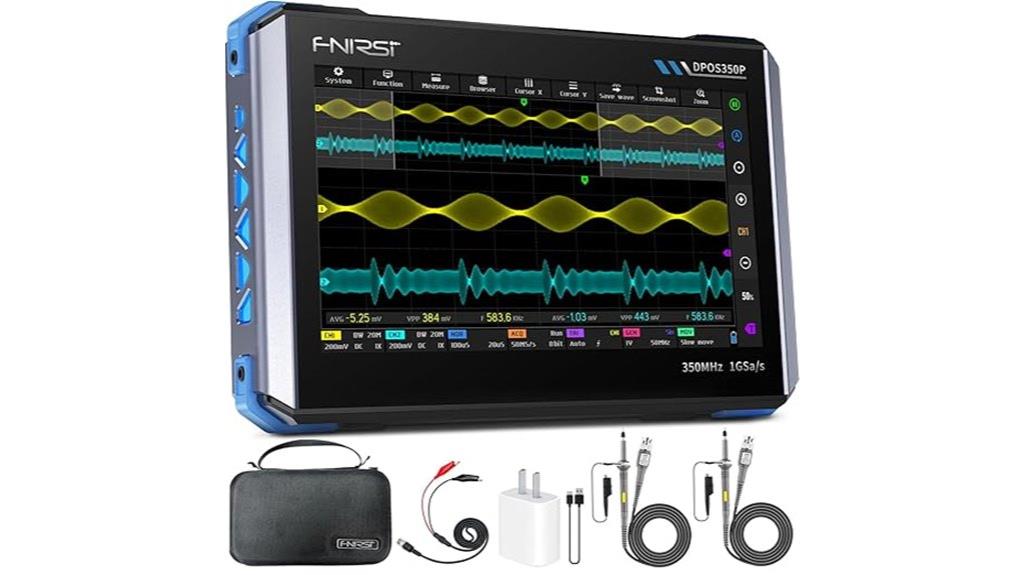

FNIRSI DPOS350P 4-in-1 Handheld Oscilloscope, Spectrum Analyzer, Frequency Response Analyzer, DDS Signal Generator, 7″ Touch Screen
The FNIRSI DPOS350P offers unmatched versatility with four integrated functions, making it suitable for complex automotive and electronics work. Its 350MHz bandwidth and 1 GSa/s sampling rate compete strongly with larger lab scopes like the Hantek 1008C+HT201 series, but in a portable form. The 7-inch touchscreen provides intuitive operation, while the extensive measurement modes—including spectrum and frequency response analysis—expand its utility beyond basic scope functions. However, the device’s multiple capabilities introduce complexity that can overwhelm beginners, and its weight and price may be barriers for field use or hobbyists. This model is best for professionals needing a comprehensive portable lab instrument, accepting some tradeoffs in size and cost.Pros:- Versatile 4-in-1 measurement functions
- High bandwidth and sampling rate for detailed analysis
- Portable with a large, intuitive touchscreen
Cons:- Complex for users unfamiliar with multiple measurement modes
- Heavy and potentially less convenient for extended field use
- Potentially expensive depending on budget
Best for: Experienced technicians and engineers needing a multi-purpose, high-performance handheld device for advanced diagnostics
Not ideal for: Beginners or hobbyists who prefer simpler, dedicated oscilloscopes for basic troubleshooting
- Bandwidth:350 MHz
- Sampling Rate:1 GSa/s
- Display:7-inch touchscreen
- Waveform Storage:500 waveforms
- Battery Capacity:8000 mAh
- Frequency Range Spectrum Analyzer:200 KHz–350 MHz
- Frequency Range Frequency Response:100 Hz–50 MHz
Our verdict“This device fits skilled professionals seeking an all-in-one, high-frequency portable instrument for complex diagnostics.”
Automotive Oscilloscopes: Waveform Analysis
This book provides a detailed overview of waveform analysis techniques tailored specifically for automotive oscilloscopes. It’s a valuable resource for technicians and enthusiasts aiming to deepen their understanding of electrical diagnostics. Compared to hardware-focused options, this guide emphasizes methodology and best practices, making it a great companion for anyone starting with basic tools like the FNIRSI 1013D Plus or the 3-in-1 device. However, it offers no physical equipment and doesn’t address specific product features—so it’s best used alongside actual oscilloscopes. If you’re looking to improve your diagnostic skills through theory and technique, this book fills that role well, though it’s not a standalone solution for troubleshooting.Pros:- Provides detailed waveform analysis techniques for automotive diagnostics
- Suitable for automotive technicians and enthusiasts
- Helps develop a deeper understanding of electrical signals
Cons:- No actual measurement hardware included
- Limited practical application without accompanying equipment
- Requires prior knowledge to fully benefit from the techniques
Best for: Automotive technicians and hobbyists interested in improving waveform analysis skills and diagnostic techniques
Not ideal for: Those seeking a physical oscilloscope or quick troubleshooting tools without a focus on theory
Our verdict“A practical guide for technicians looking to refine their waveform analysis skills in automotive diagnostics.”
Mastering Automotive Oscilloscope Diagnostics: A Practical Guide to Waveform Analysis, Sensor Testing, and Fast Fault Detection
This book focuses on applying oscilloscopes efficiently in automotive troubleshooting, offering step-by-step techniques for waveform analysis and sensor testing. It complements hardware options like the FNIRSI 1013D Plus or even the 3-in-1 device by providing practical methods to identify faults quickly. While it lacks physical features, its strength lies in improving diagnostic speed and accuracy through proven practices. It’s ideal for technicians who already have a scope but want to sharpen their skills, though newcomers might find it challenging without basic knowledge. If your goal is rapid fault detection and efficient troubleshooting, this guide offers valuable insights, but it won’t replace a dedicated scope or hardware upgrades.Pros:- Practical techniques for quick fault detection
- Enhances waveform analysis and sensor testing skills
- Helps improve troubleshooting efficiency
Cons:- No physical measurement features included
- Requires some prior scope knowledge
- Limited to diagnostic techniques, not hardware
Best for: Experienced automotive diagnosticians seeking to improve fault detection speed and waveform interpretation skills
Not ideal for: Beginners or hobbyists without prior scope experience, as it assumes foundational knowledge
Our verdict“A valuable resource for experienced professionals aiming to boost diagnostic speed and precision.”
Micsig SATO1004 Portable Automotive Oscilloscope with 4 Channels and 100MHz Bandwidth
The Micsig SATO1004 stands out for its portability and user-friendly interface, making it ideal for on-the-go diagnostics in the field. Its 8-inch touch screen and Android-based software provide a modern, intuitive experience, especially when paired with the remote app. Unlike the Hantek 1008C, which is more suited for stationary testing, the SATO1004’s wireless connectivity and physical controls simplify mobile workflows. However, its limited automotive focus means it may lack versatility for broader electronics troubleshooting. Battery life isn’t specified, which could be a concern for extended use. This pick makes the most sense for mobile technicians who need quick, reliable diagnostics without lugging heavy equipment.Pros:- Highly portable and compact for field use
- Supports remote operation via smartphone app
- Multiple connectivity options including Wi-Fi and USB
- Enhanced software with physical control buttons
Cons:- Limited to automotive applications, reducing versatility
- Requires Wi-Fi for remote features, which may be unreliable in some environments
Best for: Automotive technicians who require a portable, easy-to-use scope for field diagnostics.
Not ideal for: Electronics hobbyists seeking a multi-purpose device for general electronics work at a bench.
- Channels:4
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Display:8-inch Touch Screen
- Storage:32GB Internal Storage
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB
Our verdict“This is a top choice for mobile automotive diagnostics where ease of use and portability are priorities.”

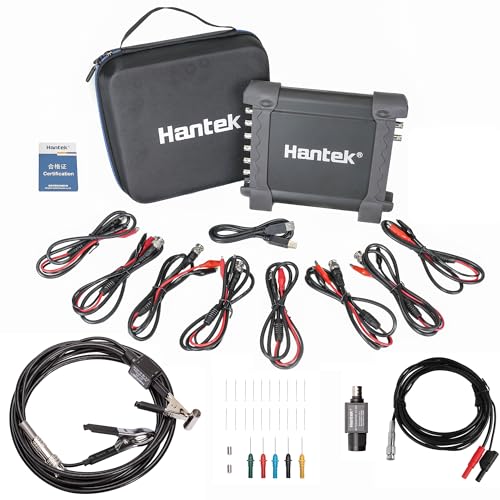

Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C+HT201+HT30A+HT307 offers extensive features for both diagnostics and signal simulation, making it suitable for technicians and hobbyists alike. Its 8 channels, combined with a programmable signal generator, surpass the capabilities of simpler scopes like the Hantek 1008C, enabling advanced testing and waveform creation. While it provides high-resolution measurements and supports multiple modes, its reliance on a Windows PC makes it less portable and more complex to set up, especially for beginners. The need for a PC also limits its use in environments where mobile diagnostics are preferred. This model is best for electronics enthusiasts and professionals who prioritize versatility over standalone operation.Pros:- Versatile with automotive diagnostics, signal generation, and general oscilloscope functions
- High-resolution, 12-bit channels with real-time sampling
- Supports USB data transfer and PC software for detailed analysis
- Includes programmable signal generator for custom waveforms
Cons:- Requires a Windows PC, limiting portability
- Complex setup may be challenging for new users
Best for: Experienced technicians and hobbyists who need a multifunction device capable of complex diagnostics and signal testing.
Not ideal for: Beginners seeking a simple, standalone scope with minimal setup or portable design.
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Connectivity:USB 2.0
Our verdict“This scope is ideal for skilled users who need comprehensive diagnostic and signal simulation features in a desktop environment.”
Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C provides a solid combination of automotive diagnostics and general oscilloscope functions, making it a good choice for those with some experience. Its 8 channels, combined with 20 automatic measurement modes, allow for comprehensive waveform analysis. The inclusion of a programmable signal generator increases its usefulness for testing and simulating signals. Compared to the more advanced Hantek 1008C+HT201+HT30A+HT307, this model offers a more straightforward setup, but with fewer features for complex testing. Its reliance on Windows software means it’s less suited for portable, on-the-go diagnostics. This scope suits users who want a reliable, versatile device for both automotive and electronics troubleshooting without the need for advanced signal generation.Pros:- Versatile with multiple measurement modes for automotive diagnostics
- High resolution and real-time sampling for precise measurements
- Includes programmable signal generator for signal testing
- USB connectivity for easy data transfer
Cons:- Limited to Windows OS for software support
- More complex for beginners without prior oscilloscope experience
Best for: Intermediate hobbyists and technicians looking for a versatile scope with automation features at an affordable price.
Not ideal for: Professionals requiring standalone operation or portable solutions for fieldwork.
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Measurement Modes:20 automatic modes
- Connectivity:USB 2.0
Our verdict“This scope appeals to users seeking a versatile, affordable device for both automotive diagnostics and electronics testing, with some prior experience.”
How We Picked
Our evaluation focused on performance, build quality, user interface, and value for money. We prioritized models with sufficient bandwidth and channel count to handle modern vehicle electronics, along with portability for field use. Ease of operation and display clarity were key, especially for less experienced users. We also considered connectivity options like USB and Wi-Fi, which facilitate data transfer and integration with diagnostic software. Ranking was determined by balancing these technical features against price, ensuring options for both professionals and hobbyists alike.Factors to Consider When Choosing Automotive Oscilloscopes
Choosing the right automotive oscilloscope involves considering several key factors that influence your diagnostic capabilities and workflow. Beyond basic specs, it’s important to understand how features like bandwidth, channels, and portability impact real-world use. A good scope should match your current needs while offering some room for future upgrades, especially if you work on complex vehicle systems. Avoiding common mistakes, such as overpaying for unnecessary features or selecting models incompatible with your existing equipment, can save you money and frustration. The following factors will help you make a well-informed choice.Bandwidth and Sampling Rate
For automotive diagnostics, bandwidth determines the scope’s ability to accurately capture high-frequency signals from sensors and electronic modules. A bandwidth of at least 100MHz is recommended for most modern vehicles, which often operate at higher frequencies. Sampling rate, which should be significantly higher than the bandwidth, affects the detail and accuracy of waveform representation. Failing to match these specs to your vehicle’s systems can result in missed faults or unclear signals, making this a critical consideration.
Channel Count and Input Options
The number of input channels directly affects how many signals you can analyze simultaneously. Most automotive applications benefit from at least two channels, but more advanced testing may require four or more. Additionally, check for features like differential inputs or specialized connectors, which expand diagnostic flexibility. Selecting a model with sufficient channels helps in complex troubleshooting, but it can also increase cost and complexity—balance this based on your typical vehicle diagnostics.
Portability and Power Options
Field diagnostics demand lightweight, portable models with long battery life, while bench-top units focus on stability and expanded features. Handheld models offer convenience but may sacrifice some advanced functionalities found in larger devices. Consider how often you’ll need to move the scope around and whether battery operation is necessary. Reliable power options, including rechargeable batteries and external adapters, ensure your testing isn’t interrupted during critical diagnostics.
Ease of Use and Display Quality
A user-friendly interface with a clear, high-resolution display reduces the learning curve and improves diagnostic accuracy. Touchscreens and intuitive menus are advantageous, especially for technicians who need quick data interpretation. Complex models with extensive features can be overwhelming for beginners, so assessing the display quality and software usability is essential. Investing in a scope with good ergonomics can pay off by saving time and reducing errors.
Connectivity and Data Management
Modern automotive scopes often include USB, Wi-Fi, or Ethernet ports for easy data transfer and software updates. These features facilitate sharing waveform data, recording tests, and integrating with diagnostic platforms. Compatibility with PC or mobile apps can enhance analysis capabilities and streamline workflows. Failing to consider connectivity options might limit your ability to archive results or perform advanced diagnostics, especially in a professional setting.
Frequently Asked Questions
Is a higher bandwidth scope always better for automotive diagnostics?
While higher bandwidth allows for capturing higher-frequency signals, most automotive sensors and modules operate within a range that a 100MHz scope can adequately measure. Investing in a scope with bandwidth significantly higher than your needs may add unnecessary cost without tangible benefits. For typical vehicle diagnostics, a 100-150MHz scope strikes a good balance between performance and affordability, ensuring clear signal capture without overpaying for unused capacity.
Should I prioritize portability or a more feature-rich bench-top model?
This depends on your typical work environment. Portability is vital for technicians working on the road or in tight spaces, making handheld units more suitable. Conversely, bench-top models often provide more channels, better display quality, and advanced features, ideal for dedicated workshops. If you frequently move between locations, a portable scope with essential features will serve you best; otherwise, investing in a feature-rich model may improve your diagnostic capabilities at a fixed station.
How important is multi-channel capability for automotive testing?
Multi-channel capability allows simultaneous monitoring of multiple signals, saving time and providing a more comprehensive view of vehicle electronics. For complex systems like hybrid drivetrains or advanced engine controls, multiple channels are often essential to correlate sensor data. However, for simpler diagnostics, two channels may suffice. Consider your typical vehicle complexity and whether expanding to multi-channel testing justifies the higher cost.
Are handheld oscilloscopes durable enough for professional use?
Many handheld models are built with ruggedized cases and protective features suitable for fieldwork, but durability varies across brands. Cheaper models may not withstand rough handling or environmental exposure, risking damage and costly repairs. If you require a scope for daily use outside a controlled environment, prioritize models with reinforced housings, water resistance, and reliable battery life. Investing in a durable device reduces downtime and long-term costs.
What features should I look for if I want to upgrade in the future?
When selecting an automotive oscilloscope with future upgrades in mind, focus on models with higher bandwidth, more channels, and versatile connectivity options. Compatibility with software updates and expansion modules can extend the device’s lifespan and capabilities. Additionally, choosing a scope with a user-friendly interface and good support ensures that you can learn and adapt as your diagnostic needs evolve. Planning for future growth helps maximize your investment over time.
Conclusion
The best choice depends on your specific needs and experience level. For professionals demanding maximum performance and multi-channel testing, the Hantek 1008C+ offers extensive features at a competitive price. Beginners or mobile technicians will find the FNIRSI 1013D Plus ideal for portability without sacrificing core capabilities. Those working mainly in a shop environment with complex systems should consider a more advanced, multi-channel scope like the Micsig SATO1004. For budget-conscious buyers, models like the 3 in 1 Handheld Oscilloscope provide good value. Ultimately, matching your workflow, vehicle complexity, and budget will lead to the best investment in automotive diagnostics tools.
